Reverse Forward Switches
- Reverse Forward Switches

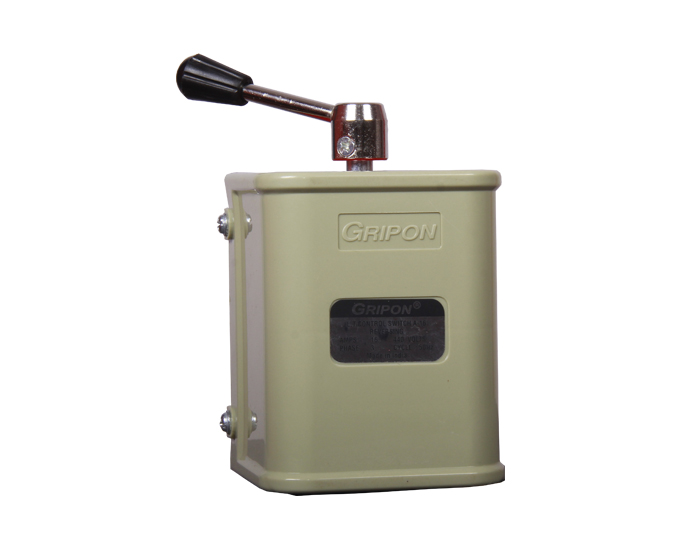

Reverse Forward Switch-Metal Handle Plastic Cover

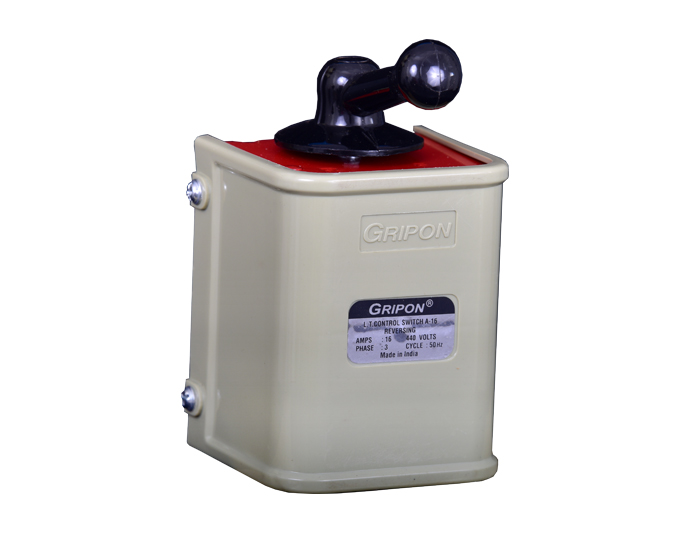

Reverse Forward Switch-Plastic Handle Plastic Cover

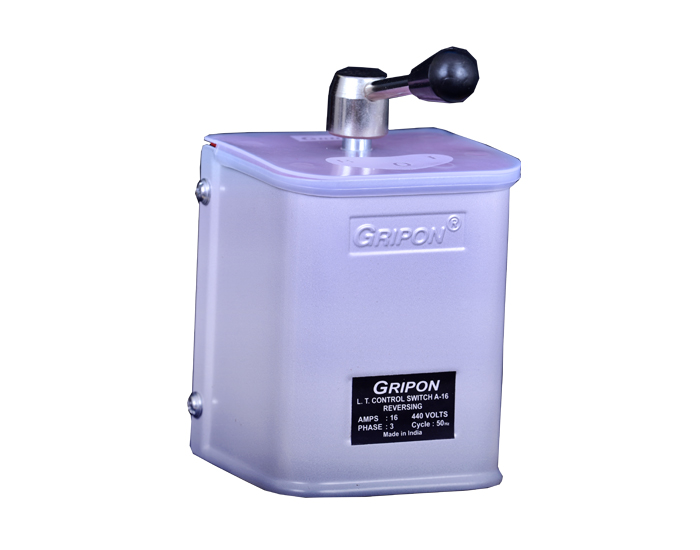

Reverse Forward Switch-Metal Handle Metal Cover

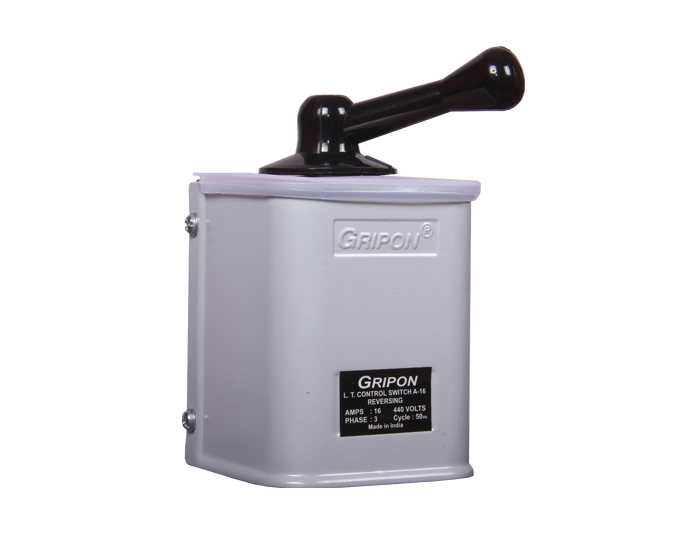

Reverse Forward Switch-Plastic Handle Metal Cover
- Reverse Forward Switch
Gripon L.T control switches can be used for single as well as three phase applications. It is very compact in size. All live parts are fully shrouded and safe door interlocking adheres to defined product safety standards.
Lever on top of the switch is used for switching operation.
Salient features of Gripon R/F switches are :
- Material is of heavy gauge size
- Contacts made of pure cold rolled electrolytic corrosion resistance copper, electroplated to withstand considerable overload without overheating to increase the life of switching cycle
- Glossy, scratch resistant, anti corrosive powder coating for the outer casting for long life attractive appearance
- High breaking capacity
- High Durability
- Non corrosive & rust proof
- Exceptionally long life
- Smooth, Trouble free operation
Range : 16 A, 32 A
Handle : Metal/Plastic
Rated Voltage : 440 V AC
Gripon L.T. control switches are designed for various industries. They can be used for Projection, Mounting on tool-drill machines, lathe machines, threading, tapping machines, wood working machines, band saws, power press, press brakes, switch boards, control panels, textile machines, generator sets, change over switch & can also be used as a Limit Fixed control of the switch by removing the handle.
| CAT. NO. | RATING | SUITABLE FOR |
| GRFS- 16PP | 16 AMP | 3 HP |
| GRFS- 16PM | 16 AMP | 3 HP |
| GRFS- 16MM | 16 AMP | 3 HP |
| GRFS- 16MP | 16 AMP | 3 HP |
| GRFS- 32PP | 32 AMP | 7.5 HP |
| GRFS- 32PM | 32 AMP | 7.5 HP |
| GRFS- 32MM | 32 AMP | 7.5 HP |
| GRFS- 32MP | 32 AMP | 7.5 HP |
Standard Packing : 30 Pcs.
P - Plastic Handle/ Plastic Cover
M - Metal Handle/ Metal Cover
