Melamine Terminal Block
- Feed Through Terminals

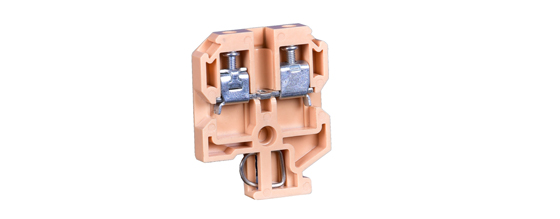

GST2.5
| Terminal Pitch |
7 |
| H×W (mm) |
48.0×40.0 |
| Rated Cross Section (mm²) |
4 mm² |
| Connection (Stranded) |
0.5 mm²-4 mm² |
| Possibility (Solid) |
0.5mm²-6 mm² |
| Wire Strippinng Length |
12 mm |
| Type of Connection |
2 screw clamp & 1 tapped hole for cross connection |
| Rating (IEC 60947-7-1) |
800V/32A/4mm²/0.5N.m |
| Screw Size |
M3 |
| Color & CAT No. |
|
| Grey |
|
| Khaki |
GST 2.5/K |
| Red |
GST2.5/R |
| Yellow |
GST2.5/Y |
| Blue |
GST2.5/B |
| Black |
GST2.5/BLK |
| End Plate |
GEP-X |
| End Clamp Model No. |
GECM1/GECP1 |
| Standard Packing |
100PCS |
| Mounting Rail | TS 32 |

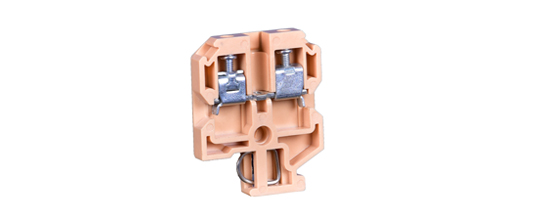

GST6
| Terminal Pitch |
8 |
| H×W (mm) |
49.0×40.0 |
| Rated Cross Section (mm²) |
6 mm² |
| Connection (Strannded) |
0.5 mm²-6 mm² |
| Possibility (Solid) |
0.5 mm²-10 mm² |
| Wire Strippinng Length |
12 mm |
| Type of Connection |
2 screw clamp & 1 tapped hole for cross connection |
| Rating (IEC 60947-7-1) |
800V/41A/6 mm²/0.8 N.m |
| Screw Size |
M3.5 |
| Color & CAT No. |
|
| Grey |
|
| Khaki |
GST 6/K |
| Red |
GST 6/R |
| Yellow |
GST 6/Y |
| Blue |
GST 6/B |
| Black |
GST 6/BLK |
| End Plate |
GEP-X |
| End Clamp Model No. |
GECM1/GECP1 |
| Standard Packing |
100PCS |
| Mounting Rail |
TS32 |

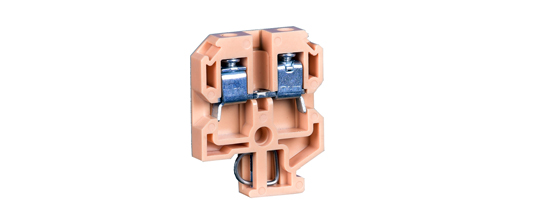

GST10
| Terminal Pitch |
10 |
| H×W (mm) |
49.0*40.0 |
| Rated Cross Section (mm²) |
10 mm² |
| Connection (Strannded) |
1.5 mm²-10 mm² |
| Possibility (Solid) |
1.5 mm²-16 mm² |
| Type of Connection |
2 screw clamp & 1 tapped hole for cross connection |
| Rating (IEC 60947-7-1) |
800V/57A/10 mm²/1.2 N.m |
| Screw Size |
M4 |
| Color & CAT No. |
|
| Grey |
|
| Khaki |
GST 10/K |
| Red |
GST 10/R |
| Yellow |
GST 10/Y |
| Blue |
GST 10/B |
| Black |
GST 10/BLK |
| End Plate |
GEP-X |
| End Clamp Model No. |
GECM1/GECP1 |
| Standard Packing |
100PCS |
| Mounting Rail |
TS 32 |

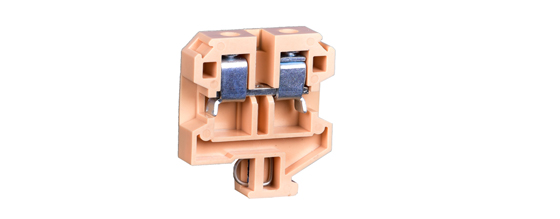

GST16
| Terminal Pitch |
12.5 |
| H×W (mm) |
54.0×49.0 |
| Rated Cross Section (mm²) |
16 mm² |
| Connection (Strannded) |
6mm²-16 mm² |
| Possibility (Solid) |
6mm²-25mm² |
| Type of Connection |
2 screw clamp & 1 tapped hole for cross connection |
| Rating (IEC 60947-7-1) |
800V/76A/16mm²/1.2N.m |
| Screw Size |
M4 |
| Color & CAT No. |
|
| Grey |
|
| Khaki |
GST 16/K |
| Red |
GST 16/R |
| Yellow |
GST 16/Y |
| Blue |
GST 16/B |
| Black |
GST 16/BLK |
| End Plate |
GEP-Y |
| End Clamp Model No. |
GECM1/GECP1 |
| Standard Packing |
100PCS |
| Mounting Rail |
TS 32 |

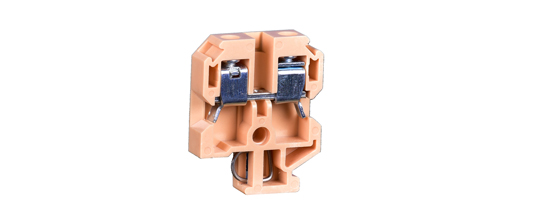

GST25
| Terminal Pitch |
13.5 |
| H×W (mm) |
58.0×44.5 |
| Rated Cross Section (mm²) |
25 mm² |
| Connection (Strannded) |
6 mm²-25 mm² |
| Possibility (Solid) |
6 mm²- 35mm² |
| Wire Strippinng Length |
15 mm |
| Type of Connection |
2 screw clamp & 1 tapped hole for cross connection |
| Rating (IEC 60947-7-1) |
800V/101A/25 mm²/1.2 N.m |
| Screw Size | M5 |
| Color & CAT No. |
|
| Grey |
|
| Khaki |
GST 25/K |
| Red | GST 25/R |
| Yellow | GST 25/Y |
| Blue | GST 25/B |
| Black | GST 25/BLK |
| End Plate | GEP-Y-1 |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 100PCS |
| Mounting Rail |
TS 32 |

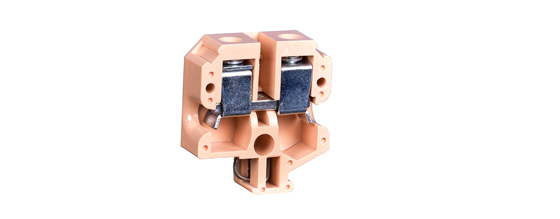

GST35
| Terminal Pitch |
18.5 |
| H×W (mm) |
58.0×53.0 |
| Rated Cross Section (mm²) |
35 mm² |
| Connection (Strannded) |
10 mm²-35 mm² |
| Possibility (Solid) |
10 mm²-50 mm² |
| Wire Strippinng Length |
15 mm |
| Type of Connection |
2 screw clamp & 1 tapped hole for cross connection |
| Rating (IEC 60947-7-1) | 800V/125A/35mm²/2.5 Nm |
| Screw Size | M6 |
| Color & CAT No. |
|
| Grey |
|
| Khaki |
GST 35/K |
| Red | GST 35/R |
| Yellow | GST 35/Y |
| Blue | GST 35/B |
| Black | GST 35/BLK |
| End Plate | GEP-Z |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 50PCS |
| Mounting Rail |
TS 32 |
- Stud Type Terminals

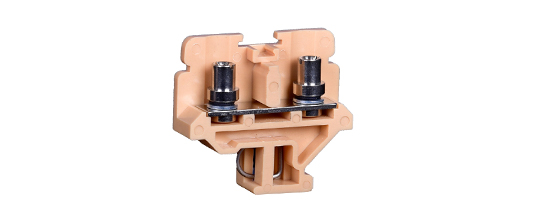

GST B4
| Terminal Pitch | 13 |
| H×W (mm) | 44.0×49.5 |
| Rated Cross Section (mm²) | 10 mm² |
| Connection (Strannded) | 2.5 mm²-10 mm² |
| Possibility (Solid) | 2.5 mm²- 10 mm² |
| Wire Strippinng Length | |
| Type of Connection | 2 screw flat connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/57A/10 mm²/1.2 N.m |
| Screw Size | M4 |
| Color & CAT No. |
|
| Grey |
|
| Khaki | GST B4/K |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-S |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 100PCS |
| Mounting Rail |
TS 32 |

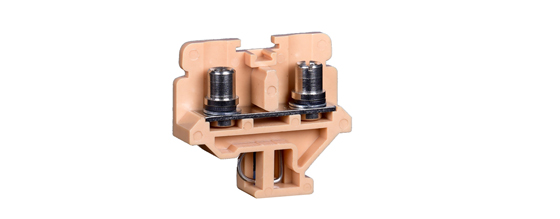

GST B5
| Terminal Pitch | 13 |
| H×W (mm) | 44.0×49.5 |
| Rated Cross Section (mm²) | 16 mm² |
| Connection (Strannded) | 2.5 mm²-16 mm² |
| Possibility (Solid) | 2.5 mm²-16 mm² |
| Wire Strippinng Length |
|
| Type of Connection | 2 screw flat connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/76A/16mm²/2.0N.m |
| Screw Size | M5 |
| Color & CAT No. |
|
| Grey |
|
| Khaki | GST B5/K |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-S |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 100PCS |
| Mounting Rail |
TS 32 |

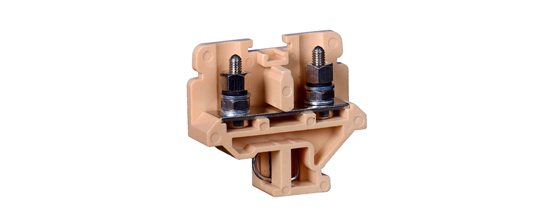

GST N4
| Terminal Pitch | 15 |
| H×W (mm) | 44.0×49.5 |
| Rated Cross Section (mm²) | 10 mm² |
| Connection (Strannded) | 2.5 mm²-10 mm² |
| Possibility (Solid) | 2.5 mm²- 10 mm² |
| Wire Strippinng Length | |
| Type of Connection | 2 nut connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/57A/10 mm²/1.2 N.m |
| Screw Size | M4 |
| Color & CAT No. |
|
| Grey |
|
| Khaki | GSTN4/K |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-S |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 100PCS |
| Mounting Rail |
TS 32 |

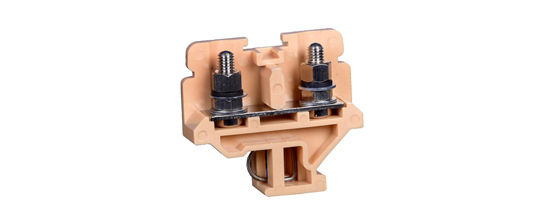

GST N5
| Terminal Pitch | 15 |
| H×W (mm) | 44.0×49.5 |
| Rated Cross Section (mm²) | 16 mm² |
| Connection (Strannded) | 2.5 mm²-16 mm² |
| Possibility (Solid) | 2.5 mm²-16 mm² |
| Wire Strippinng Length |
|
| Type of Connection | 2 nut connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/76A/16mm²/2.0N.m |
| Screw Size | M5 |
| Color & CAT No. |
|
| Grey |
|
| Khaki | GSTN5/K |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-S |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 100PCS |
| Mounting Rail |
TS 32 |
- Bus Bar Terminals

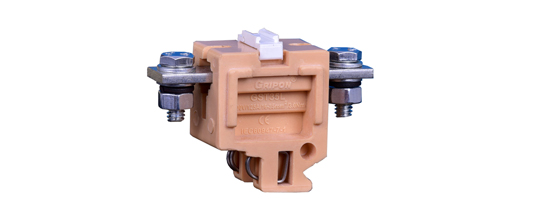

GST 35L
| Terminal Pitch | 30.0 |
| H×W (mm) | 48.0×76.0 |
| Rated Cross Section (mm²) | 50 mm² |
| Connection (Strannded) | 35mm²-50mm² |
| Possibility (Solid) | |
| Wire Strippinng Length | |
| Type of Connection | 2 nut connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 1000V/125A/35-50mm²/3.0Nm |
| Screw Size | M6 |
| Color & CAT No. |
|
| Grey |
|
| Khaki | GST 35L /K |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-B |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 10PCS |
| Mounting Rail |
TS 32 |

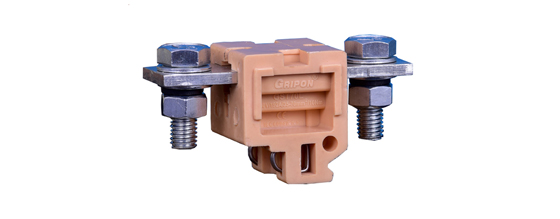

GST 70L
| Terminal Pitch | 40.0 |
| H×W (mm) | 48.0×96.0 |
| Rated Cross Section (mm²) | 70 mm² |
| Connection (Strannded) | 50mm²-70mm² |
| Possibility (Solid) | |
| Wire Strippinng Length |
|
| Type of Connection | 2 nut connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 1000V/192A/70-95 mm²/10 N.m |
| Screw Size | M10 |
| Color & CAT No. |
|
| Grey |
|
| Khaki | GST 70L /K |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-B |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 10PCS |
| Mounting Rail |

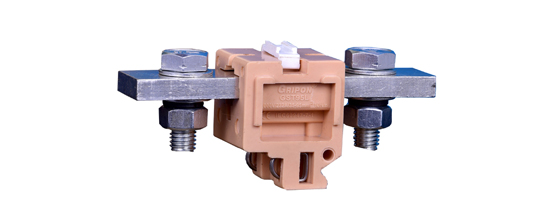

GST 95L
| Terminal Pitch | 40 |
| H×W (mm) | 48.0×115.0 |
| Rated Cross Section (mm²) | 120 mm² |
| Connection (Strannded) | 70 mm²-120 mm² |
| Possibility (Solid) | |
| Wire Strippinng Length | |
| Type of Connection | 2 nut flat connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 1000V/232A/70-120mm²/10.0Nm |
| Screw Size | M10 |
| Color & CAT No. |
|
| Grey |
|
| Khaki | GST 95L/K |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-B |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 10PCS |
| Mounting Rail |
TS 32 |

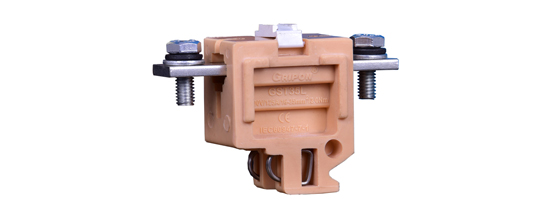

GST 35LS
| Terminal Pitch | 30 |
| H×W (mm) | 48.0×76.0 |
| Rated Cross Section (mm²) | 50 mm² |
| Connection (Strannded) | 35mm²-50mm² |
| Possibility (Solid) | |
| Wire Strippinng Length |
|
| Type of Connection | 1 nut connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 1000V/125A/35-50mm²/3.0Nm |
| Screw Size | M6 |
| Color & CAT No. |
|
| Grey |
|
| Khaki | GST35LS/K |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-B |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 10PCS |
| Mounting Rail |
TS 32 |
- Disconnecting & Testing Type Terminals

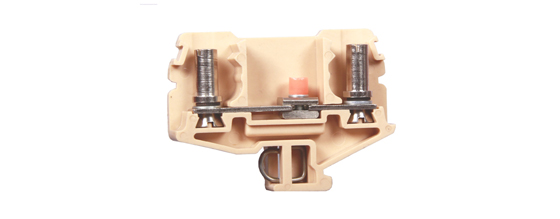

GSTDT 6-1
| Terminal Pitch | 13 |
| H×W (mm) | 55.0×68.0 |
| Rated Cross Section (mm²) | 2×6 mm² |
| Connection (Strannded) | 2.5 mm²-6 mm² |
| Possibility (Solid) | 2.5 mm²-6 mm² |
| Wire Strippinng Length | |
| Type of Connection | 2 screw flat connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/41A/6 mm²/1.2 Nm |
| Screw Size | M4 |
| Color & CAT No. |
|
| Grey |
|
| Khaki | GSTDT6-1/K |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-DT 1 |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 50PCS |
| Mounting Rail |
TS 32 |

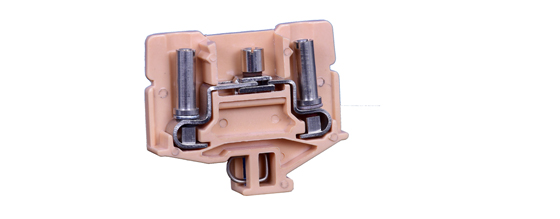

GSTDT 6
| Terminal Pitch | 13.5 |
| H×W (mm) | 55.0×68.0 |
| Rated Cross Section (mm²) | 2×6 mm² |
| Connection (Strannded) | 2.5mm²-6mm² |
| Possibility (Solid) | 2.5mm²-6mm² |
| Wire Strippinng Length |
|
| Type of Connection | 2 screw flat connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/41A/6mm²/1.2N.m |
| Screw Size | M4 |
| Color & CAT No. |
|
| Grey |
|
| Khaki | GSTDT6/K |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEPDT |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 50 pcs |
| Mounting Rail |
TS 32 |
